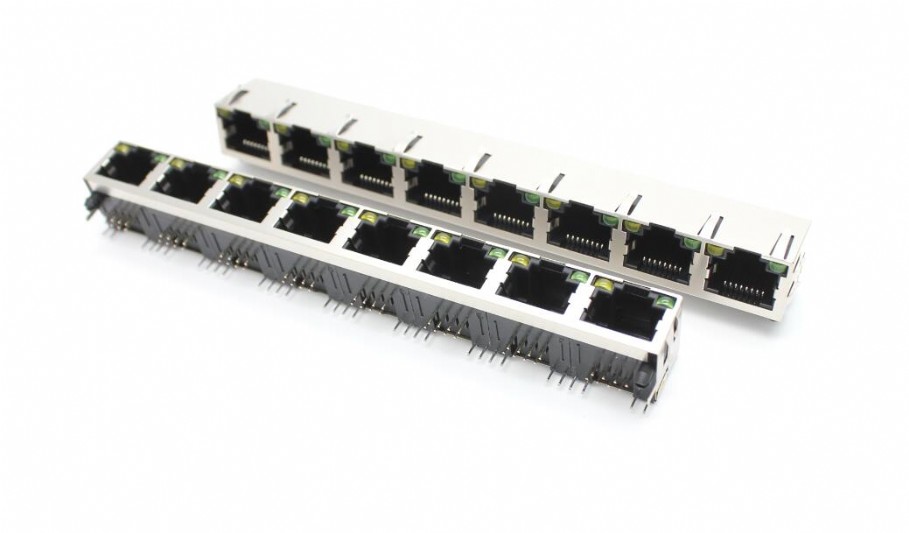

Item:    RJ45 with LED connector,female
Type:    56A-1X8-LED
PCB mounting style:    Through hole-THT
Oriented:     Side entry,right angle
Tab position:  tab up
Number of position/contacts:   8/8
Housing:   UL 94V-0
Material:    Glass-filled polyester UL 94V-0
Standard color:    Black
Contact:   Phosphor bronze T=0.35mm
                Gold plating over nickel in contact area
Gold plating:  Selective gold plating
Shield: Copper alloy(or steel alloy)0.2mm thickness plating Ni
Mehanical life time: 750 cycles min
Operating temperature range:    0°C to +70°C
Storage temperature range:     -40°C to +85°C

Product Details:


 Packing Size(CM):53*36.5*27.5

 Gross Weight(KG):17KG

 Lead Time:a week

 Payment Terms:T/T

 Supply Ability:10K/DAY

 Minimum Order Quantity:500PCS

 Place of Origin:Made in China
