YL59D-S2688L1-E2

YL59D-S2688L1-E2
YL59D-S2688L1-E2
DownLoad PDF

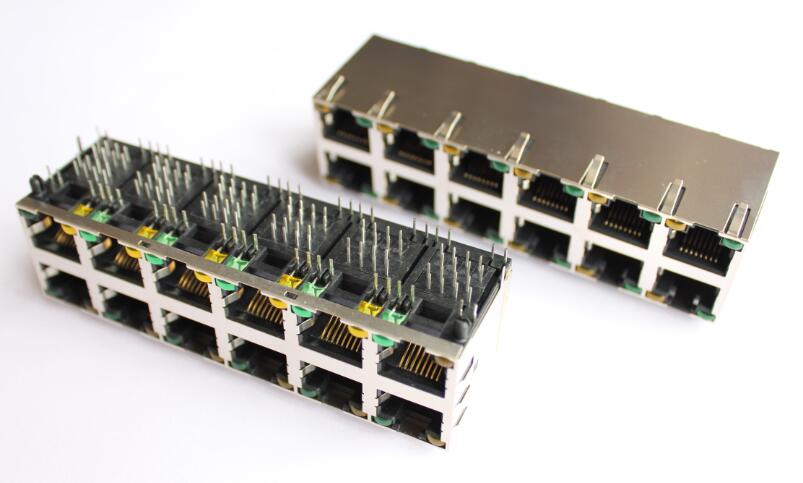

Item:    RJ45 with shielded connector,female
Type:    59D-2X6
PCB mounting style:    Through hole-THT
Oriented:     Side entry,right angle
Tab position:  tab up/tab down
Number of position/contacts:    8/8
Housing:   UL 94V-0
Material:    Glass-filled polyester UL 94V-0
Standard color:    Black
Contact:   Phosphor bronze T=0.35mm
                Gold plating over nickel in contact area
Gold plating:  Selective gold plating
Shield: Copper alloy(or steel alloy)0.2mm thickness plating Ni
Mehanical life time: 750 cycles min
Operating temperature range: -20°C to +75°C
Storage temperature range: -40°C to +85°C



Product Details:

 Packaging:15PCS/Tray,210PCS/Box

 Packing Size(CM):50*40*26

 Gross Weight(KG):20KG

 Lead Time:goods in stock

 Payment Terms:T/T

 Supply Ability:10K/DAY

 Minimum Order Quantity:210PCS

 Place of Origin:Made in China
