DownLoad PDF

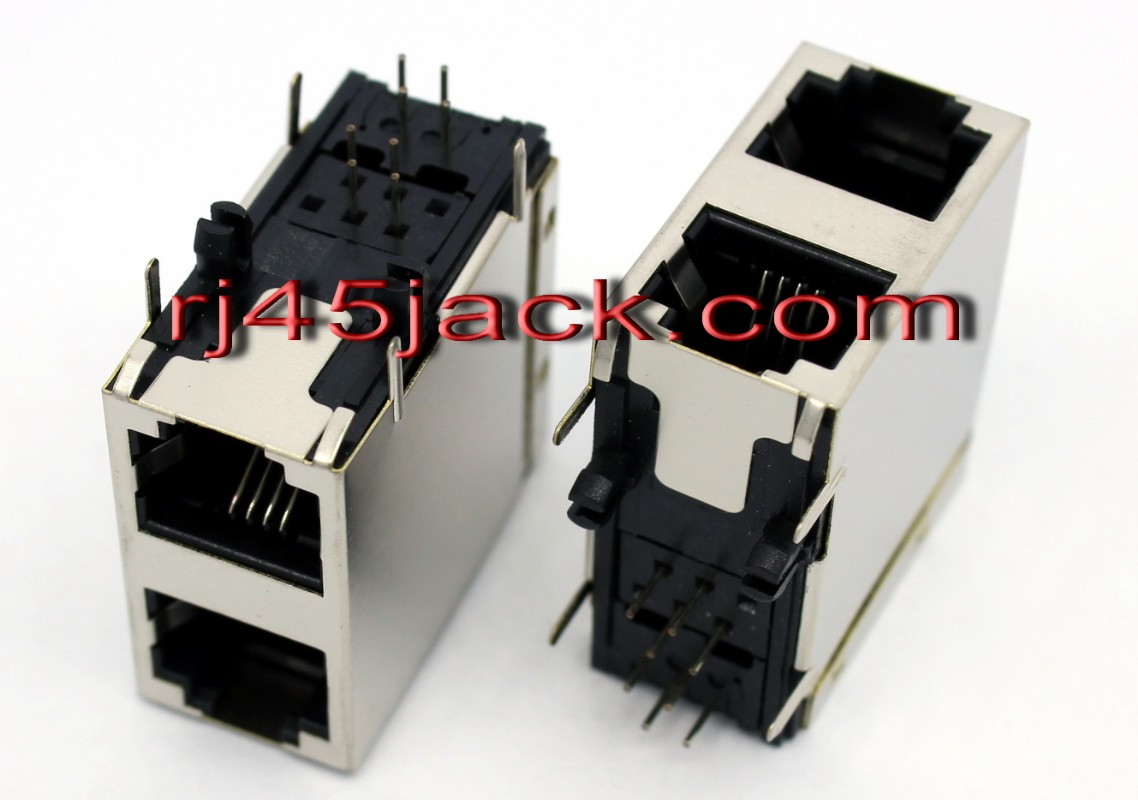

Item: RJ11 with shielded connector,female
Type: 59A-2X1
PCB mounting style: Through hole-THT
Oriented: Side entry,right angle
Tab position: tab up/tab down
Number of position/contacts: 6/4
Housing: UL 94V-0
Material: Glass-filled polyester UL 94V-0
Standard color: Black
Contact: Phosphor bronze T=0.35mm
Gold plating over nickel in contact area

Gold plating: Selective gold plating
Shield: Copper alloy(or steel alloy)0.2mm thickness plating Ni
Mehanical life time: 750 cycles min
Operating temperature range: -20°C to +75°C
Storage temperature range: -40°C to +85°C


Product Details:


 Packing Size(CM):35*29*30

 Gross Weight(KG):16.5KG

 Lead Time:3 WEEKS

 Payment Terms:T/T

 Supply Ability:20K/DAY

 Minimum Order Quantity:1000PCS

 Place of Origin:Made in China
