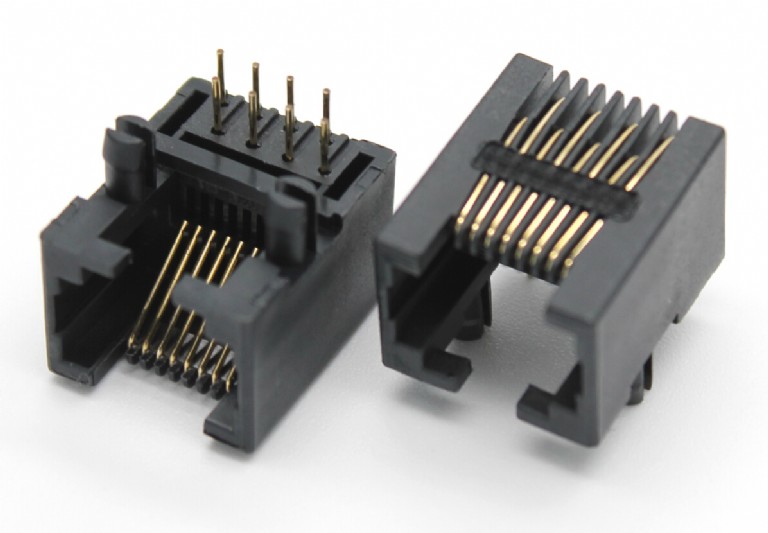

Item:    RJ45 w/o shielded connector,female
Type:    53A-1X1-8p8c
PCB mounting style:   DIP

Oriented:    Side entry
Tab position:  tab down

Number of position/contacts:    8/8
Housing:   UL 94V-0
Material:    PBT  UL 94V-0
Standard color:    Black
Contact:   Phosphor bronze T=0.35mm
                Gold plating over nickel in contact area
Gold plating:  Selective gold plating
Shield: unshielded
Mehanical life time: 750 cycles min
Operating temperature range: -20°C to +75°C
Storage temperature range: -40°C to +85°C


Product Details:


 Packing Size(CM):

 Gross Weight(KG):20KG

 Lead Time:1 weeks

 Payment Terms:T/T

 Supply Ability:100K/DAY

 Minimum Order Quantity:2000PCS

 Place of Origin:Made in China
