YL59A-S1108A-E2,友隆电子

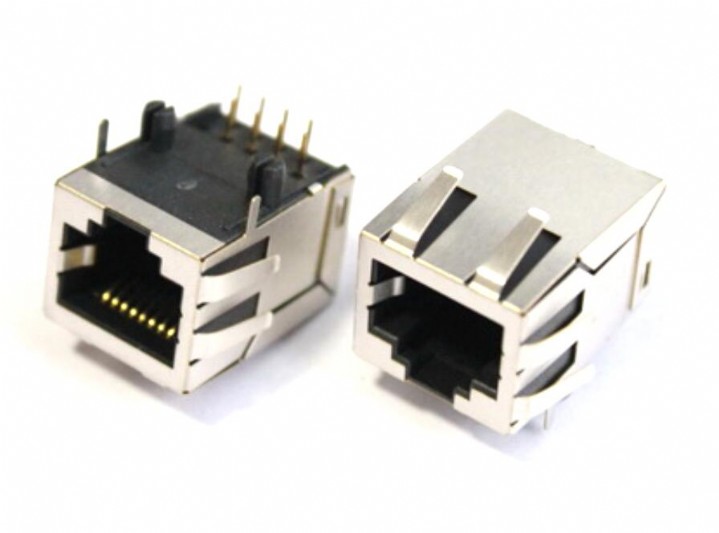

Item:    RJ45 With shielded connector,female
Type:    59A-1X1
PCB mounting style:    Through hole-THT
Oriented:     Side entry,right angle
Tab position: tab down
Number of position/contacts:    8/8
Housing:   UL 94V-0
Material:    Glass-filled polyester UL 94V-0
Standard color:    Black
Contact:   Phosphor bronze T=0.35mm
                Gold plating over nickel in contact area
Gold plating: Selective gold plating
Shield: Copper alloy(or steel alloy)0.2mm thickness plating Ni
Mehanical life time: 750 cycles min
Operating temperature range: -20°C to +75°C
Storage temperature range: -40°C to +85°C
