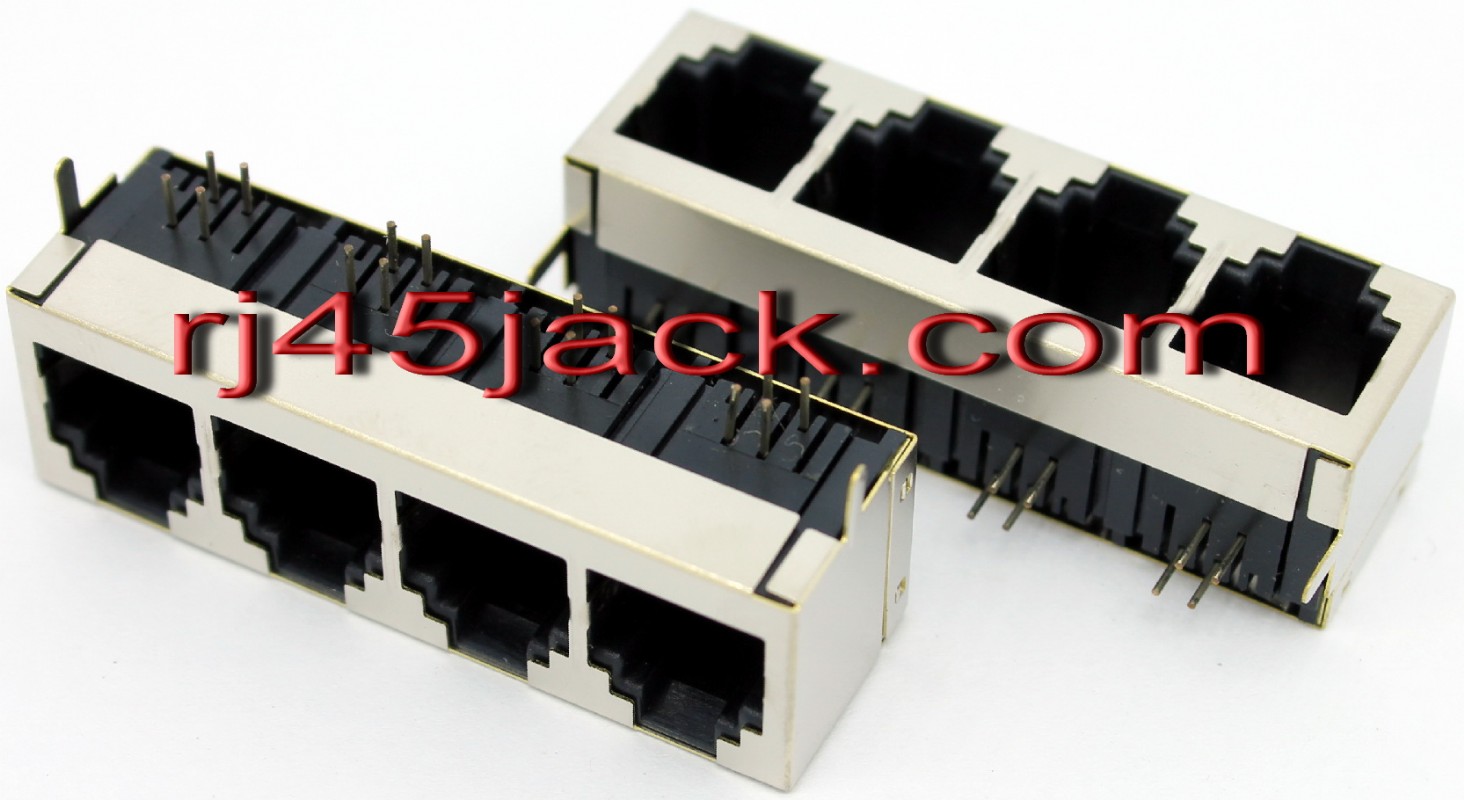

Item:    RJ11 with shielded connector,female
Type:    5521-1X4
PCB mounting style:    Through hole-THT
Oriented:     Side entry,right angle
Tab position:  tab up
Number of position/contacts:    6/4
Housing:   UL 94V-0
Material:    Glass-filled polyester UL 94V-0
Standard color:    Black
Contact:   Phosphor bronze T=0.35mm
                Gold plating over nickel in contact area
Gold plating:  Selective gold plating
Shield: Copper alloy(or steel alloy)0.2mm thickness plating Ni
Mehanical life time: 750 cycles min
Operating temperature range:    0°C to +70°C
Storage temperature range:     -40°C to +85°C
