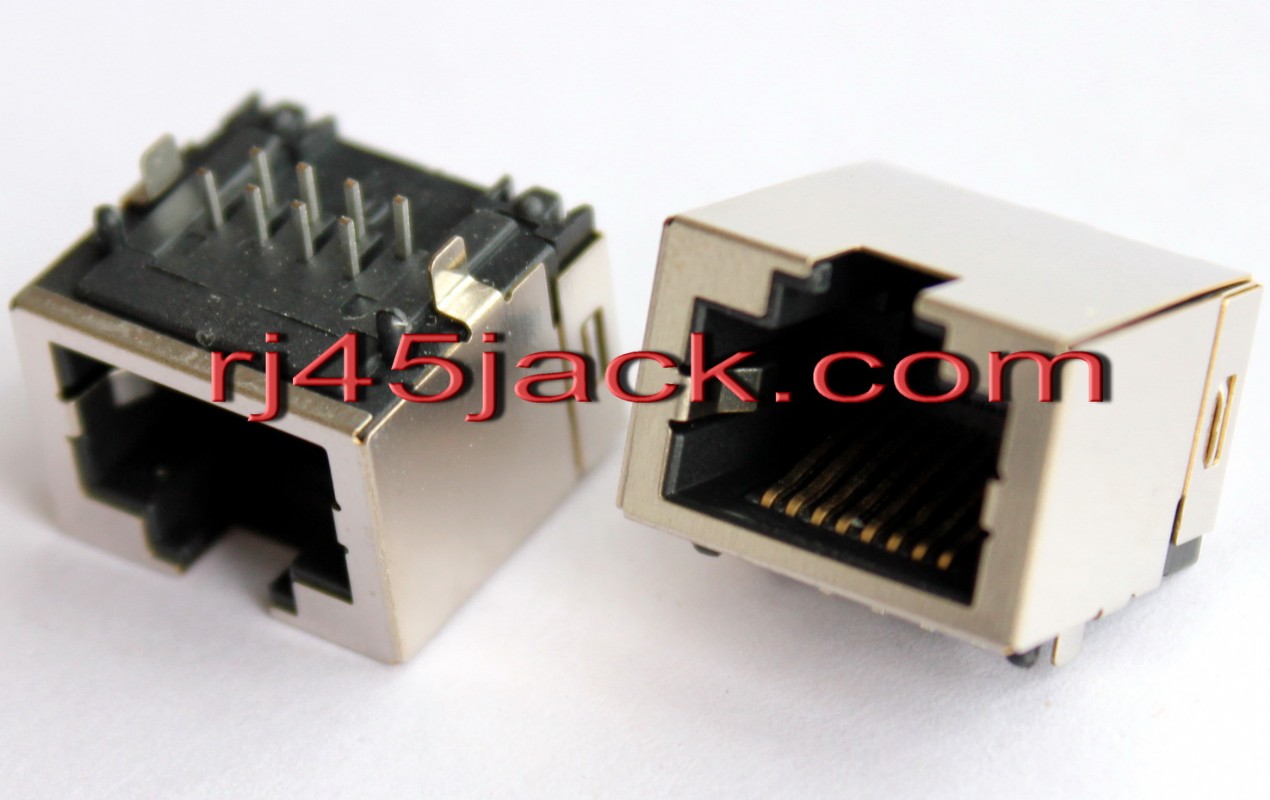

Item: RJ45 connector,female
Type: 56B-LED
PCB mounting style: Through hole-THT
Oriented: Side entry,right angle
Tab position: tab up
Number of position/contacts: 8/8
Housing: UL 94V-0
Material: Glass-filled polyester UL 94V-0
Standard color: Black
Contact: Phosphor bronze T=0.35mm
Gold plating over nickel in contact area
Gold plating: Selective gold plating
Shield: Copper alloy(or steel alloy)0.2mm thickness plating Ni
Mehanical life time: 750 cycles min
Operating temperature range: 0°C to +70°C
Storage temperature range: -40°C to +85°C
